Western Wall Wearing Away? Discovery of Extreme Erosion Process Could Guide New Preservation Techniques

Western Wall Wearing Away? Discovery of Extreme Erosion Process Could Guide New Preservation Techniques

August 11th, 2014
Geology

Researchers from the Hebrew University of Jerusalem investigated erosion in the different types of limestone in the Western Wall located at the foot of Jerusalem’s Temple Mount. Stones comprised of large crystals were almost unchanged in 2000 years, while limestone containing small crystals eroded much faster and in some cases had receded by tens of centimeters, potentially weakening the wall’s structure. The researchers describe an accelerated erosion process that explains why some rocks are more weathered than others, and displayed that chemo-mechanical erosion extends down to the tiny micron scale. The findings could have significant implications for regional and global carbonate weathering, and could help guide the development of effective preservation techniques that slow the rate of erosion in order to protect cultural heritage sites around the world.

Visitors to the Western Wall in Jerusalem can see that some of its stones have suffered extreme erosion. This is good news for people placing prayer notes in the wall’s many cracks and crevices, but presents a major problem for engineers concerned about the structure’s stability.

The Western Wall is a remnant of the ancient wall that surrounded the courtyard of the Jewish Temple in Jerusalem. It resides in Jerusalem’s Old City at the foot of the Temple Mount.

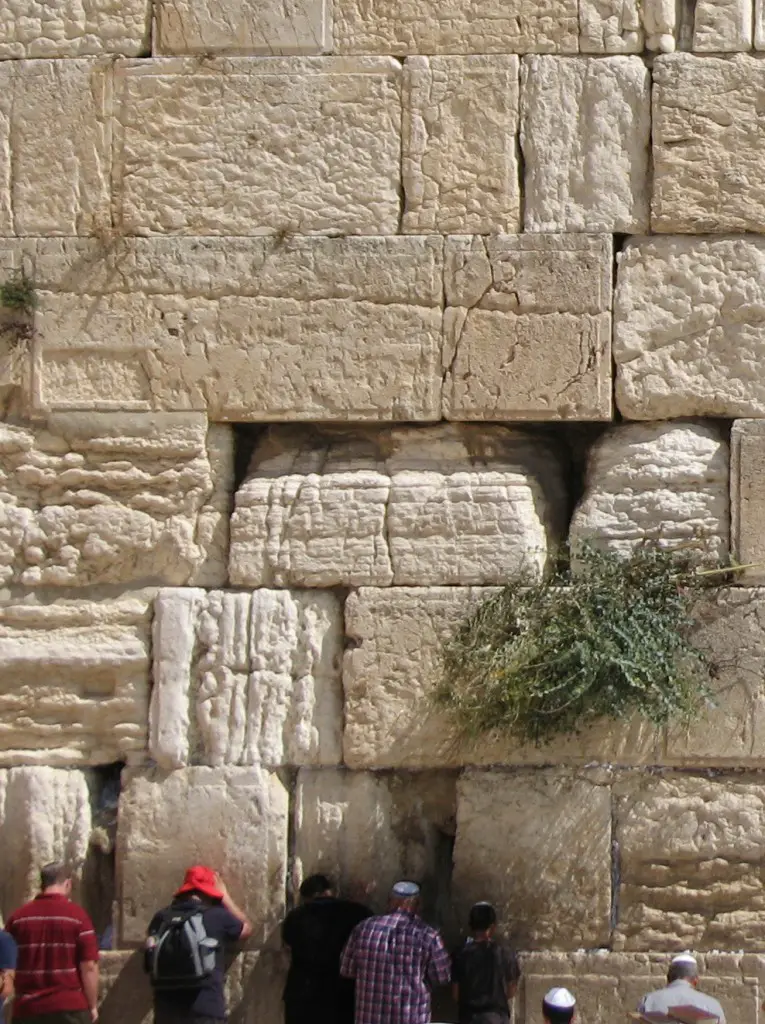

Part of the Western Wall showing highly eroded blocks alongside well preserved stones. (Photo: Dr. Simon Emmanuel, Hebrew University)

Part of the Western Wall showing highly eroded blocks alongside well preserved stones. (Photo: Dr. Simon Emmanuel, Hebrew University)

In order to calculate the erosion in the different kinds of limestone that make up the Western Wall, researchers from the Hebrew University of Jerusalem used a laser scanner to create an accurate three-dimensional computer model. The researchers are Dr. Simon Emmanuel, the Harry P. Kaufmann Senior Lecturer in Environmental Water Technology, and PhD student Mrs. Yael Levenson, at the Hebrew University’s Institute of Earth Sciences.

As reported in an article accepted for publication in the journal Geology, they discovered that stones comprised of large crystals were resistant to wear, so they remained in a good condition over the 2000 years since they were put into place. However, limestone with very small crystals (about a thousandth of a millimeter in size) eroded at a much faster rate.

Microscope image of Jerusalem limestone made up of tiny crystals. (Photo: Dr. Simon Emmanuel, Hebrew University)

Microscope image of Jerusalem limestone made up of tiny crystals. (Photo: Dr. Simon Emmanuel, Hebrew University)

In some cases, extreme erosion rates in fine-grained micritic limestone blocks were up to 100 times faster than the average rates estimated for the coarse-grained limestone blocks. In some places these stones had receded by tens of centimeters, potentially weakening the entire structure.

In order to obtain a better understanding of what causes the two types of rock to behave differently, the researchers collected samples from ancient quarries thought to have supplied the stones for the Second Temple. Using a powerful atomic force microscope, they were able to see how the rocks disintegrated when they came into contact with water. During the experiments on rocks comprised of small crystals, tiny particles rapidly detached from the surface of the rock. These experiments stimulated the way in which rainwater interacts with limestone in nature.

Observed for the first time in Dr. Emmanuel’s lab, this process of accelerated erosion has the potential to explain why some rocks are more weathered than others. While mechanical weathering is thought to act on blocks and chips of rock at the visible outcrop sale, the researchers displayed for the first time that chemo-mechanical erosion extends down to the tiny micron sale. The findings could have significant implications for regional and global carbonate weathering.

According to Dr. Emmanuel, “Understanding such weathering processes could help guide the development of effective preservation techniques. For example, it may be possible to develop materials that slow the rate of erosion by binding the tiny crystals in the rock together. Advanced engineering techniques like this should assist efforts to protect not only the Western Wall, but other cultural heritage sites in Israel and around the world.”

The research appears as “Carbonate weathering rates accelerated by micron-scale grain detachment,” in the journal Geology. The research was supported by the Israel Science Foundation.





Contributing Source: Hebrew University of Jerusalem

Header Image Source: Wikimedia
